Chapter 2 - USBX Device Class Considerations

UINT ux_device_class_pima_object_add(
    UX_SLAVE_CLASS_PIMA *pima,
    ULONG object_handle);

/* Send the notification to the host that an object has been added. */

status = ux_device_class_pima_object_add(pima, UX_PICTBRIDGE_OBJECT_HANDLE_CLIENT_REQUEST);

UINT ux_device_class_pima_object_number_get(
    UX_SLAVE_CLASS_PIMA *pima,
    ULONG *object_number);

UINT ux_pictbridge_dpsclient_object_number_get(UX_SLAVE_CLASS_PIMA *pima, ULONG *number_objects)
{
    /* We force the number of objects to be 1 only here. This will be the XML scripts. */
    *number_objects = 1;
    return(UX_SUCCESS);
}

UINT **ux_device_class_pima_object_handles_get**(
    UX_SLAVE_CLASS_PIMA_STRUCT *pima,
    ULONG object_handles_format_code,
    ULONG object_handles_association,
    ULONG *object_handles_array,
    ULONG object_handles_max_number);

UINT ux_pictbridge_dpsclient_object_handles_get(UX_SLAVE_CLASS_PIMA *pima,
    ULONG object_handles_format_code,
    ULONG object_handles_association,
    ULONG *object_handles_array,
    ULONG object_handles_max_number)
{

    UX_PICTBRIDGE *pictbridge;
    UX_SLAVE_CLASS_PIMA_OBJECT *object_info;

    /* Get the pointer to the Pictbridge instance. */
    pictbridge = (UX_PICTBRIDGE *) pima -> ux_device_class_pima_application;

    /* Set the pima pointer to the pictbridge instance. */
    pictbridge -> ux_pictbridge_pima = (VOID *) pima;

    /* We say we have one object but the caller might specify different format code and associations. */
    object_info = pictbridge -> ux_pictbridge_object_client;

    /* Insert in the array the number of found handles so far: 0. */
    ux_utility_long_put((UCHAR *)object_handles_array, 0);

    /* Check the type demanded. */

    if (object_handles_format_code == 0 || object_handles_format_code ==
        0xFFFFFFFF || object_info -> ux_device_class_pima_object_format ==
        object_handles_format_code)
    {
        /* Insert in the array the number of found handles. This handle is for the client XML script. */
        ux_utility_long_put((UCHAR *)object_handles_array, 1);

        /* Adjust the array to point after the number of elements. */
        object_handles_array++;

        /* We have a candidate. Store the handle. */
        ux_utility_long_put((UCHAR *)object_handles_array, object_info ->
            ux_device_class_pima_object_handle_id);
    }

    return(UX_SUCCESS);
}

UINT ux_device_class_pima_object_info_get(
    struct UX_SLAVE_CLASS_PIMA_STRUCT *pima,
    ULONG object_handle,
    UX_SLAVE_CLASS_PIMA_OBJECT **object);

UINT ux_pictbridge_dpsclient_object_info_get(UX_SLAVE_CLASS_PIMA *pima,
    ULONG object_handle, UX_SLAVE_CLASS_PIMA_OBJECT **object)
{
    UX_PICTBRIDGE *pictbridge;
    UX_SLAVE_CLASS_PIMA_OBJECT *object_info;
    /* Get the pointer to the Pictbridge instance. */
    pictbridge = (UX_PICTBRIDGE *)pima -> ux_device_class_pima_application;

    /* Check the object handle. If this is handle 1 or 2 , we need to return the XML script object.
       If the handle is not 1 or 2, this is a JPEG picture or other object to be printed. */
    if ((object_handle == UX_PICTBRIDGE_OBJECT_HANDLE_HOST_RESPONSE) ||
        (object_handle == UX_PICTBRIDGE_OBJECT_HANDLE_CLIENT_REQUEST)) {

        /* Check what XML object is requested. It is either a request script or a response. */
        if (object_handle == UX_PICTBRIDGE_OBJECT_HANDLE_HOST_RESPONSE)
            object_info = (UX_SLAVE_CLASS_PIMA_OBJECT *) pictbridge -> ux_pictbridge_object_host;
        else
            object_info = (UX_SLAVE_CLASS_PIMA_OBJECT *) pictbridge ->
                ux_pictbridge_object_client;
    } else
        /* Get the object info from the job info structure. */
        object_info = (UX_SLAVE_CLASS_PIMA_OBJECT *) pictbridge ->
            ux_pictbridge_jobinfo.ux_pictbridge_jobinfo_object;
    /* Return the pointer to this object. */
    *object = object_info;

    /* We are done. */
    return(UX_SUCCESS);
}

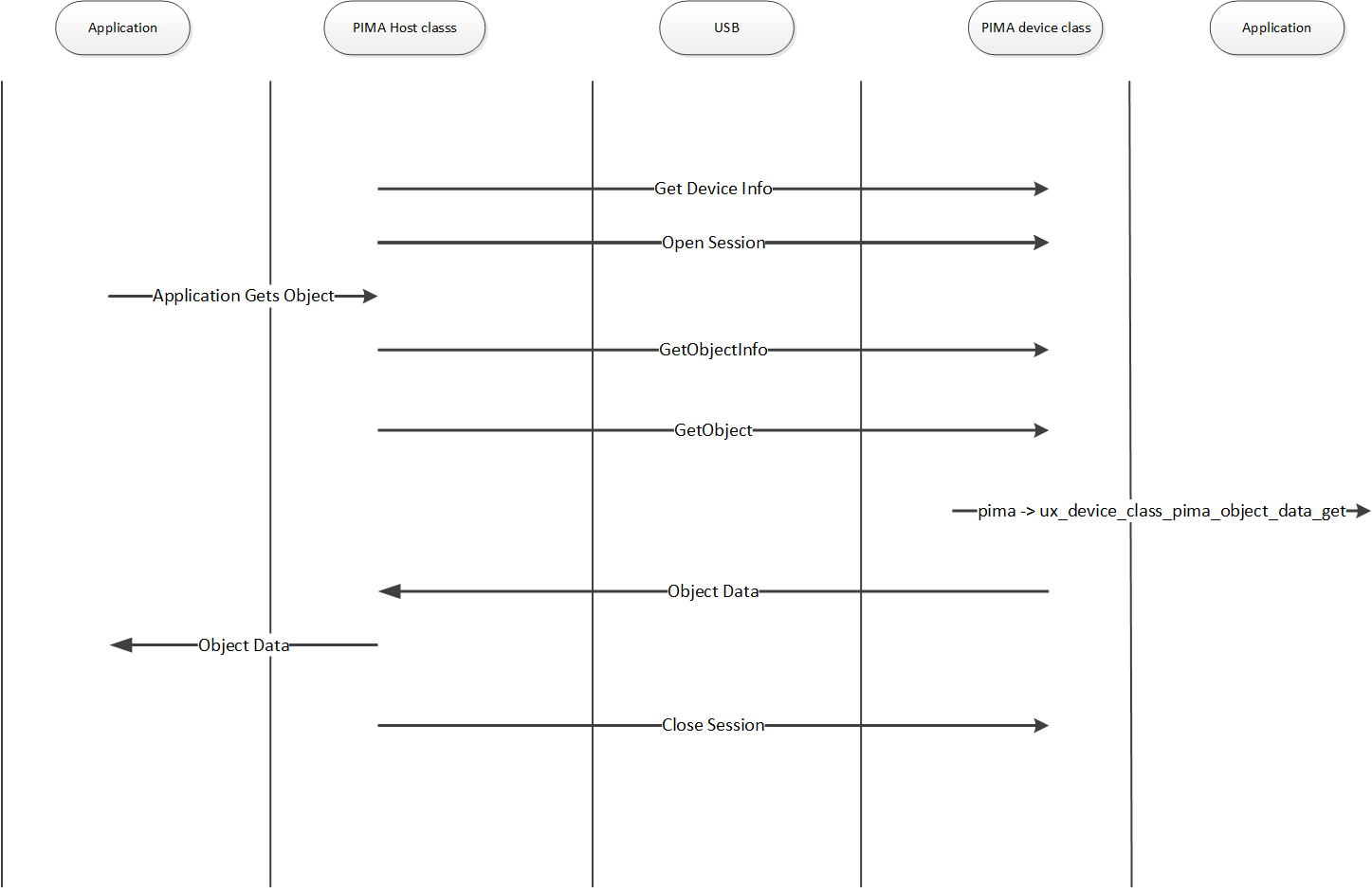

UINT ux_device_class_pima_object_info_get(
    UX_SLAVE_CLASS_PIMA *pima,
    ULONG object_handle,
    UCHAR *object_buffer,
    ULONG object_offset,
    ULONG object_length_requested,
    ULONG *object_actual_length);

UINT ux_pictbridge_dpsclient_object_data_get(UX_SLAVE_CLASS_PIMA *pima,
    ULONG object_handle, UCHAR *object_buffer, ULONG object_offset,
    ULONG object_length_requested, ULONG *object_actual_length)
{

    UX_PICTBRIDGE *pictbridge;
    UX_SLAVE_CLASS_PIMA_OBJECT *object_info;
    UCHAR *pima_object_buffer;
    ULONG actual_length;
    UINT status;

    /* Get the pointer to the Pictbridge instance. */
    pictbridge = (UX_PICTBRIDGE *)pima -> ux_device_class_pima_application;

    /* Check the object handle. If this is handle 1 or 2 , we need to return the XML script object.
       If the handle is not 1 or 2, this is a JPEG picture or other object to be printed. */
    if ((object_handle == UX_PICTBRIDGE_OBJECT_HANDLE_HOST_RESPONSE) ||
        (object_handle == UX_PICTBRIDGE_OBJECT_HANDLE_CLIENT_REQUEST))
    {
        /* Check what XML object is requested. It is either a request script or a response. */
        if (object_handle == UX_PICTBRIDGE_OBJECT_HANDLE_HOST_RESPONSE)
            object_info = (UX_SLAVE_CLASS_PIMA_OBJECT *) pictbridge ->
                ux_pictbridge_object_host;
        else
            object_info = (UX_SLAVE_CLASS_PIMA_OBJECT *) pictbridge ->
                ux_pictbridge_object_client;

       /* Is this the correct handle ? */
       if (object_info -> ux_device_class_pima_object_handle_id == object_handle)
       {
           /* Get the pointer to the object buffer. */
           pima_object_buffer = object_info -> ux_device_class_pima_object_buffer;

           /* Copy the demanded object data portion. */
           ux_utility_memory_copy(object_buffer, pima_object_buffer +
               object_offset, object_length_requested);

           /* Update the length requested. for a demo, we do not do any checking. */
           *object_actual_length = object_length_requested;

           /* What cycle are we in ? */
           if (pictbridge -> ux_pictbridge_host_client_state_machine &
               UX_PICTBRIDGE_STATE_MACHINE_HOST_REQUEST)
            {
                /* Check if we are blocking for a client request. */
                if (pictbridge -> ux_pictbridge_host_client_state_machine &
                    UX_PICTBRIDGE_STATE_MACHINE_CLIENT_REQUEST_PENDING)

                    /* Yes we are pending, send an event to release the pending request. */
                    ux_utility_event_flags_set(&pictbridge ->
                        ux_pictbridge_event_flags_group,
                        UX_PICTBRIDGE_EVENT_FLAG_STATE_MACHINE_READY, TX_OR);

               /* Since we are in host request, this indicates we are done with the cycle. */
               pictbridge -> ux_pictbridge_host_client_state_machine =
                   UX_PICTBRIDGE_STATE_MACHINE_IDLE;

            }

            /* We have copied the requested data. Return OK. */
            return(UX_SUCCESS);

        }
    }
    else
    {

        /* Get the object info from the job info structure. */
        object_info = (UX_SLAVE_CLASS_PIMA_OBJECT *) pictbridge ->
            ux_pictbridge_jobinfo.ux_pictbridge_jobinfo_object;

        /* Obtain the data from the application jobinfo callback. */
        status = pictbridge -> ux_pictbridge_jobinfo.
            ux_pictbridge_jobinfo_object_data_read(pictbridge, object_buffer, object_offset,
            object_length_requested, &actual_length);

        /* Save the length returned. */
        *object_actual_length = actual_length;

        /* Return the application status. */
        return(status);

    }

    /* Could not find the handle. */

    return(UX_DEVICE_CLASS_PIMA_RC_INVALID_OBJECT_HANDLE);
}

UINT ux_device_class_pima_object_info_send(
    UX_SLAVE_CLASS_PIMA *pima,
    UX_SLAVE_CLASS_PIMA_OBJECT *object,
    ULONG *object_handle);

UINT ux_pictbridge_dpsclient_object_info_send(UX_SLAVE_CLASS_PIMA *pima,
    UX_SLAVE_CLASS_PIMA_OBJECT *object, ULONG *object_handle)
{
    UX_PICTBRIDGE *pictbridge;
    UX_SLAVE_CLASS_PIMA_OBJECT *object_info; UCHAR
    string_discovery_name[UX_PICTBRIDGE_MAX_FILE_NAME_SIZE];

    /* Get the pointer to the Pictbridge instance. */
    pictbridge = (UX_PICTBRIDGE *)pima -> ux_device_class_pima_application;

    /* We only have one object. */
    object_info = (UX_SLAVE_CLASS_PIMA_OBJECT *) pictbridge ->
        ux_pictbridge_object_host;

    /* Copy the demanded object info set. */
    ux_utility_memory_copy(object_info, object,
        UX_SLAVE_CLASS_PIMA_OBJECT_DATA_LENGTH);

    /* Store the object handle. In Pictbridge we only receive XML scripts so the handle is hardwired to 1. */
    object_info -> ux_device_class_pima_object_handle_id = 1;
    *object_handle = 1;

    /* Check state machine. If we are in discovery pending mode, check file name of this object. */
    if (pictbridge -> ux_pictbridge_discovery_state ==
        UX_PICTBRIDGE_DPSCLIENT_DISCOVERY_PENDING)
    {
        /* We are in the discovery mode. Check for file name. It must match
           HDISCVRY.DPS in Unicode mode. */

        /* Check if this is a script. */
        if (object_info -> ux_device_class_pima_object_format ==
            UX_DEVICE_CLASS_PIMA_OFC_SCRIPT)
        {

            /* Yes this is a script. We need to search for the HDISCVRY.DPS file name. Get the file name in a ascii format. */
            ux_utility_unicode_to_string(object_info ->
                ux_device_class_pima_object_filename,
                string_discovery_name);

            /* Now, compare it to the HDISCVRY.DPS file name. Check length first. */
            if (ux_utility_string_length_get(_ux_pictbridge_hdiscovery_name)
                == ux_utility_string_length_get(string_discovery_name))
            {

                /* So far, the length of name of the files are the same. Compare names now. */
                if(ux_utility_memory_compare(_ux_pictbridge_hdiscovery_name,
                    string_discovery_name,
                    ux_utility_string_length_get(string_discovery_name)) == UX_SUCCESS)
                {
                    /* We are done with discovery of the printer. We can now send notifications when the camera wants to print an object. */
                    pictbridge -> ux_pictbridge_discovery_state =
                        UX_PICTBRIDGE_DPSCLIENT_DISCOVERY_COMPLETE;

                    /* Set an event flag if the application is listening. */
                    ux_utility_event_flags_set(&pictbridge ->
                        ux_pictbridge_event_flags_group,
                        UX_PICTBRIDGE_EVENT_FLAG_DISCOVERY, TX_OR);

                    /* There is no object during th discovery cycle. */
                    return(UX_SUCCESS);
                }
            }
        }
    }
    /* What cycle are we in ? */
    if (pictbridge -> ux_pictbridge_host_client_state_machine ==
        UX_PICTBRIDGE_STATE_MACHINE_IDLE)

        /* Since we are in idle state, we must have received a request from the host. */
        pictbridge -> ux_pictbridge_host_client_state_machine =
            UX_PICTBRIDGE_STATE_MACHINE_HOST_REQUEST;

    /* We have copied the requested data. Return OK. */
    return(UX_SUCCESS);
}

UINT ux_device_class_pima_object_data_send(
    UX_SLAVE_CLASS_PIMA *pima,
    ULONG object_handle,
    ULONG phase,
    UCHAR *object_buffer,
    ULONG object_offset,
    ULONG object_length);

UINT ux_pictbridge_dpsclient_object_data_send(UX_SLAVE_CLASS_PIMA *pima,
    ULONG object_handle,
    ULONG phase,
    UCHAR *object_buffer,
    ULONG object_offset,
    ULONG object_length)
{
    UINT status;
    UX_PICTBRIDGE *pictbridge;
    UX_SLAVE_CLASS_PIMA_OBJECT *object_info;
    ULONG event_flag;
    UCHAR *pima_object_buffer;

    /* Get the pointer to the Pictbridge instance. */
    pictbridge = (UX_PICTBRIDGE *)pima -> ux_device_class_pima_application;

    /* Get the pointer to the pima object. */
    object_info = (UX_SLAVE_CLASS_PIMA_OBJECT *) pictbridge ->
        ux_pictbridge_object_host;

    /* Is this the correct handle ? */
    if (object_info -> ux_device_class_pima_object_handle_id == object_handle)
    {
        /* Get the pointer to the object buffer. */
        pima_object_buffer = object_info ->
            ux_device_class_pima_object_buffer;

        /* Check the phase. We should wait for the object to be completed and the response sent back before parsing the object. */
        if (phase == UX_DEVICE_CLASS_PIMA_OBJECT_TRANSFER_PHASE_ACTIVE)
        {
            /* Copy the demanded object data portion. */
            ux_utility_memory_copy(pima_object_buffer + object_offset,
                object_buffer, object_length);

            /* Save the length of this object. */
            object_info -> ux_device_class_pima_object_length = object_length;

            /* We are not done yet. */
            return(UX_SUCCESS);
        }
        else
        {
            /* Completion of transfer. We are done. */
            return(UX_SUCCESS);
        }
    }
}

UINT ux_device_class_pima_object_delete(
    UX_SLAVE_CLASS_PIMA *pima,
    ULONG object_handle);

UINT ux_pictbridge_dpsclient_object_delete(UX_SLAVE_CLASS_PIMA *pima,
    ULONG object_handle)
{
    /* Delete the object pointer by the handle. */

}

VOID ux_device_class_audio_read_thread_entry(ULONG audio_stream);

/* Set parameter to initialize a stream for reading. */
audio_stream_parameter[0].ux_device_class_audio_stream_parameter_thread_entry
     = ux_device_class_audio_read_thread_entry;

VOID ux_device_class_audio_write_thread_entry(ULONG audio_stream);

/* Set parameter to initialize as stream for writing. */
audio_stream_parameter[0].ux_device_class_audio_stream_parameter_thread_en
    try = ux_device_class_audio_write_thread_entry;

UINT ux_device_class_audio_stream_get(
    UX_DEVICE_CLASS_AUDIO *audio,
    ULONG stream_index,
    UX_DEVICE_CLASS_AUDIO_STREAM **stream);

/* Get audio stream instance. */
status = ux_device_class_audio_stream_get(audio, 0, &stream);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_reception_start(UX_DEVICE_CLASS_AUDIO_STREAM *stream);

/* Start stream data reception. */
status = ux_device_class_audio_reception_start(stream);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_sample_read8(
    UX_DEVICE_CLASS_AUDIO_STREAM *stream,
    UCHAR *buffer);

/* Read a byte in audio FIFO. */

status = ux_device_class_audio_sample_read8(stream, &sample_byte);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_sample_read16(
    UX_DEVICE_CLASS_AUDIO_STREAM *stream,
    USHORT *buffer);

/* Read a 16-bit sample in audio FIFO. */

status = ux_device_class_audio_sample_read16(stream, &sample_word);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_sample_read24(
    UX_DEVICE_CLASS_AUDIO_STREAM *stream,
    ULONG *buffer);

/* Read 3 bytes to in audio FIFO. */

status = ux_device_class_audio_sample_read24(stream, &sample_bytes);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_sample_read32(
    UX_DEVICE_CLASS_AUDIO_STREAM *stream,
    ULONG *buffer);

/* Read 4 bytes in audio FIFO. */

status = ux_device_class_audio_sample_read32(stream, &sample_bytes);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_read_frame_get(
    UX_DEVICE_CLASS_AUDIO_STREAM *stream,
    UCHAR **frame_data,
    ULONG *frame_length);

/* Get frame access. */

status = ux_device_class_audio_read_frame_get(stream, &frame, &frame_length);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_read_frame_free(UX_DEVICE_CLASS_AUDIO_STREAM *stream);

/* Refree a frame buffer in FIFO. */

status = ux_device_class_audio_read_frame_free(stream);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_transmission_start(UX_DEVICE_CLASS_AUDIO_STREAM *stream);

/* Start stream data transmission. */

status = ux_device_class_audio_transmission_start(stream);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_frame_write(
    UX_DEVICE_CLASS_AUDIO_STREAM *stream,
    UCHAR *frame,
    ULONG frame_length);

/* Get frame access. */

status = ux_device_class_audio_frame_write(stream, frame, frame_length);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio_write_frame_get(
    UX_DEVICE_CLASS_AUDIO_STREAM *stream,
    UCHAR **frame_data,
    ULONG *frame_length);

/* Get frame access. */

status = ux_device_class_audio_write_frame_get(stream, &frame, &frame_length);

if(status != UX_SUCCESS)
     return;

UINT ux_device_class_audio_write_frame_commit(
    UX_DEVICE_CLASS_AUDIO_STREAM *stream,
    ULONG length);

/* Commit a frame after fill values in buffer. */

status = ux_device_class_audio_write_frame_commit(stream, 192);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_audio10_control_process(
    UX_DEVICE_CLASS_AUDIO *audio,
    UX_SLAVE_TRANSFER *transfer_request,
    UX_DEVICE_CLASS_AUDIO10_CONTROL_GROUP *group);

/* Initialize audio 1.0 control values. */

audio_control[0].ux_device_class_audio10_control_fu_id = 2;
audio_control[0].ux_device_class_audio10_control_mute[0] = 0;
audio_control[0].ux_device_class_audio10_control_volume[0] = 0;
audio_control[1].ux_device_class_audio10_control_fu_id = 5;
audio_control[1].ux_device_class_audio10_control_mute[0] = 0;
audio_control[1].ux_device_class_audio10_control_volume[0] = 0;

/* Handle request and update control values.
Note here only mute and volume for master channel is supported.
*/

status = ux_device_class_audio10_control_process(audio, transfer, &group);
if (status == UX_SUCCESS)
{
    /* Request handled, check changes */
    switch(audio_control[0].ux_device_class_audio10_control_changed)
    {
        case UX_DEVICE_CLASS_AUDIO10_CONTROL_MUTE_CHANGED:
        case UX_DEVICE_CLASS_AUDIO10_CONTROL_VOLUME_CHANGED:
        default: break;
    }
}

UINT ux_device_class_audio20_control_process(
    UX_DEVICE_CLASS_AUDIO *audio,
    UX_SLAVE_TRANSFER *transfer_request,
    UX_DEVICE_CLASS_AUDIO20_CONTROL_GROUP *group);

/* Initialize audio 2.0 control values. */

audio_control[0].ux_device_class_audio20_control_cs_id = 0x10;
audio_control[0].ux_device_class_audio20_control_sampling_frequency = 48000;
audio_control[0].ux_device_class_audio20_control_fu_id = 2;
audio_control[0].ux_device_class_audio20_control_mute[0] = 0;
audio_control[0].ux_device_class_audio20_control_volume_min[0] = 0;
audio_control[0].ux_device_class_audio20_control_volume_max[0] = 100;
audio_control[0].ux_device_class_audio20_control_volume[0] = 50;
audio_control[1].ux_device_class_audio20_control_cs_id = 0x10;
audio_control[1].ux_device_class_audio20_control_sampling_frequency = 48000;
audio_control[1].ux_device_class_audio20_control_fu_id = 5;
audio_control[1].ux_device_class_audio20_control_mute[0] = 0;
audio_control[1].ux_device_class_audio20_control_volume_min[0] = 0;
audio_control[1].ux_device_class_audio20_control_volume_max[0] = 100;
audio_control[1].ux_device_class_audio20_control_volume[0] = 50;

/* Handle request and update control values.
Note here only mute and volume for master channel is supported.
*/

status = ux_device_class_audio20_control_process(audio, transfer, &group);
if (status == UX_SUCCESS)
{
    /* Request handled, check changes */
    switch(audio_control[0].ux_device_class_audio20_control_changed)
    {
        case UX_DEVICE_CLASS_AUDIO20_CONTROL_MUTE_CHANGED:
        case UX_DEVICE_CLASS_AUDIO20_CONTROL_VOLUME_CHANGED:
        default: break;
    }
}

UINT _ux_device_class_printer_read(
    UX_DEVICE_CLASS_PRINTER *printer,
    UCHAR *buffer,
    ULONG requested_length,
    ULONG *actual_length);

/* Read from the printer class. */

status = ux_device_class_printer_read(device_printer, device_printer_buffer, 512, &actual_length);

if (status != UX_SUCCESS)
    return;

UINT _ux_device_class_printer_write(
    UX_DEVICE_CLASS_PRINTER *printer,
    UCHAR *buffer,
    ULONG requested_length,
    ULONG *actual_length);

/* Write to the printer class bulk in pipe. */
status = ux_device_class_printer_write(device_printer, device_buffer, device_buffer_length, &send_total);

if (status != UX_SUCCESS)
    return;

UINT ux_device_class_printer_ioctl(
    UX_DEVICE_CLASS_PRINTER *printer,
    ULONG ioctl_function,
    VOID *parameter);

status = ux_device_class_printer_ioctl(device_printer,
                                       UX_DEVICE_CLASS_PRINTER_IOCTL_PORT_STATUS_SET,
                                       (VOID *)0x73);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_printer_ioctl(
    UX_DEVICE_CLASS_PRINTER *printer,
    ULONG ioctl_function,
    VOID *parameter);

status = ux_device_class_printer_ioctl(device_printer,
                                       UX_DEVICE_CLASS_PRINTER_IOCTL_PORT_STATUS_SET,
                                       (VOID *)0x73);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_printer_ioctl(
    UX_DEVICE_CLASS_PRINTER *printer,
    ULONG ioctl_function,
    VOID *parameter);

status = ux_device_class_printer_ioctl(device_printer,
                                       UX_DEVICE_CLASS_PRINTER_IOCTL_READ_TIMEOUT_SET,
                                       (VOID *)10000);

if(status != UX_SUCCESS)
    return;

UINT ux_device_class_printer_ioctl(
    UX_DEVICE_CLASS_PRINTER *printer,
    ULONG ioctl_function,
    VOID *parameter);

status = ux_device_class_printer_ioctl(device_printer,
                                       UX_DEVICE_CLASS_PRINTER_IOCTL_WRITE_TIMEOUT_SET,
                                       (VOID *)10000);

if(status != UX_SUCCESS)
    return;
